GEARBOX (MINT LAB)

Item no .: 70131

Number of components: 120

Setup time: 2 hours

Model size: 13.0 x 10.0 x 11.0 cm

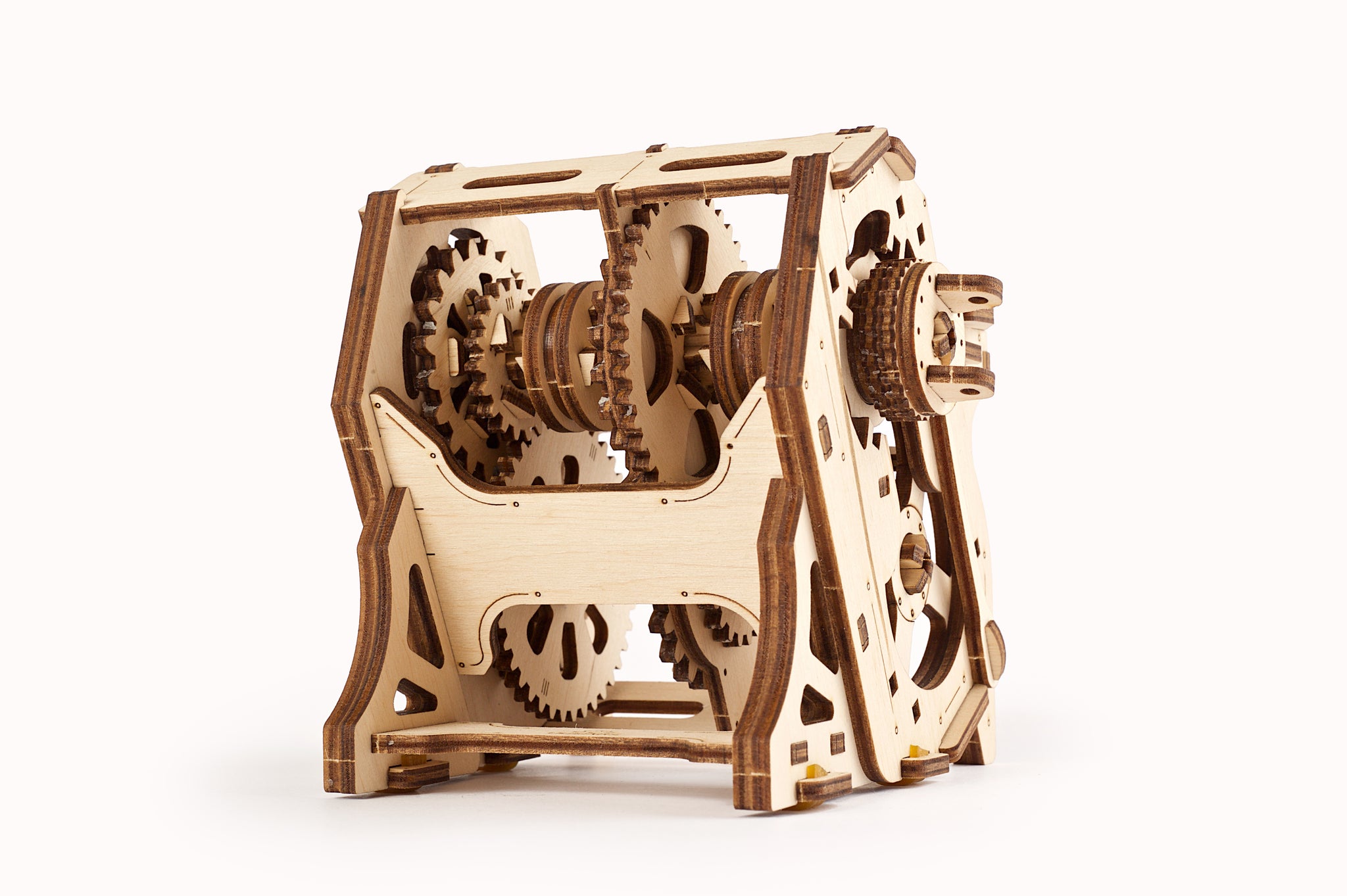

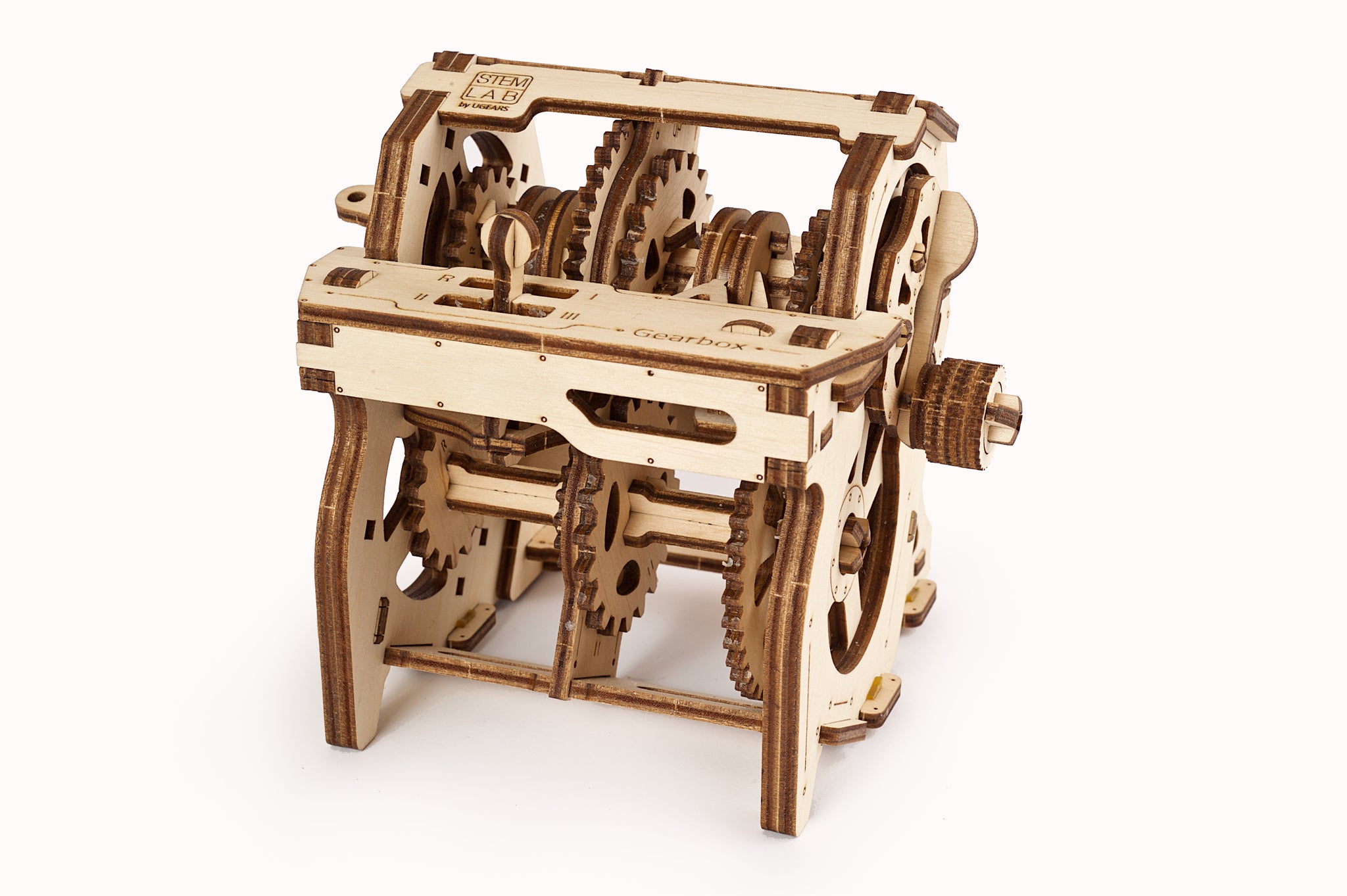

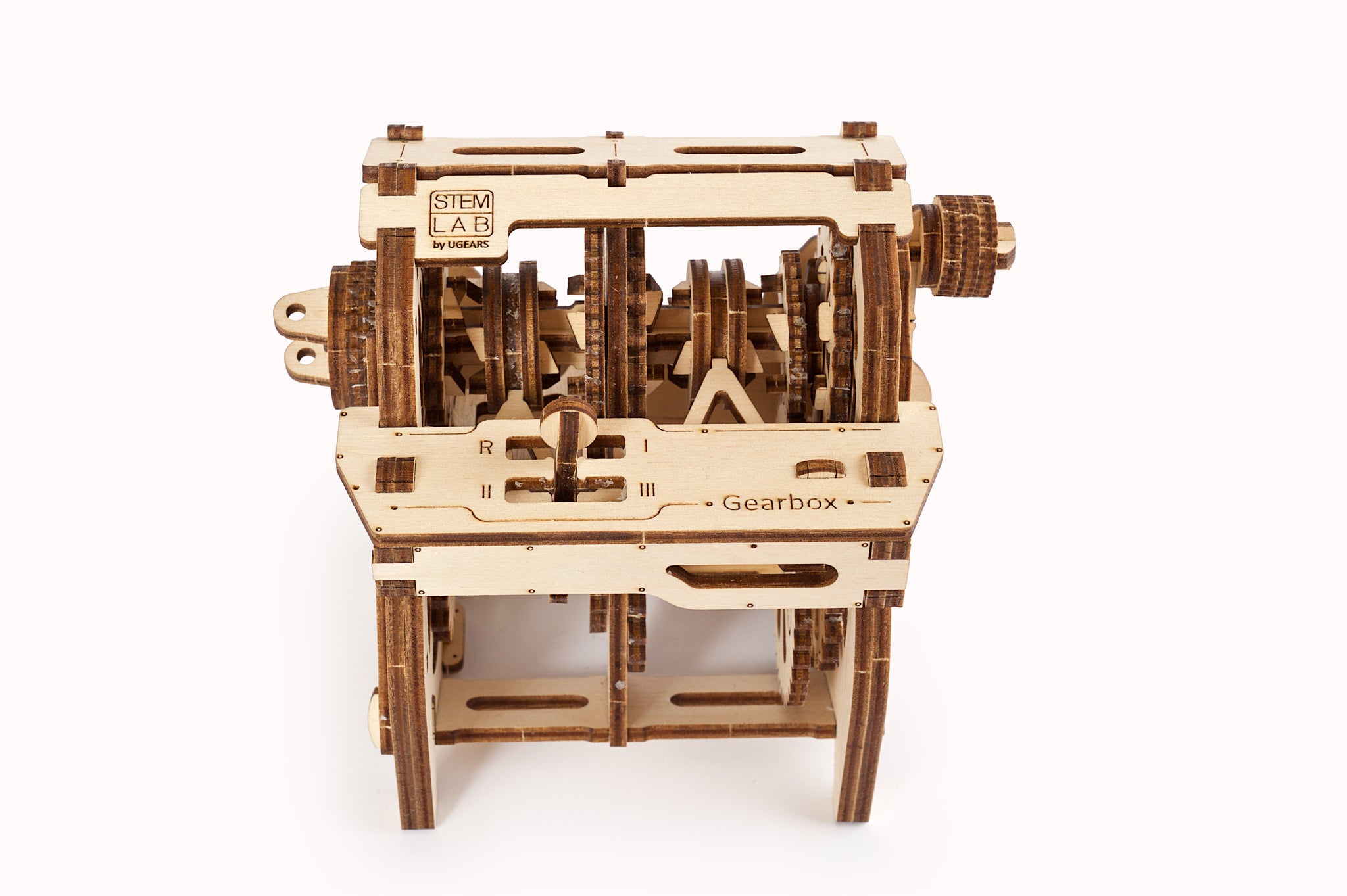

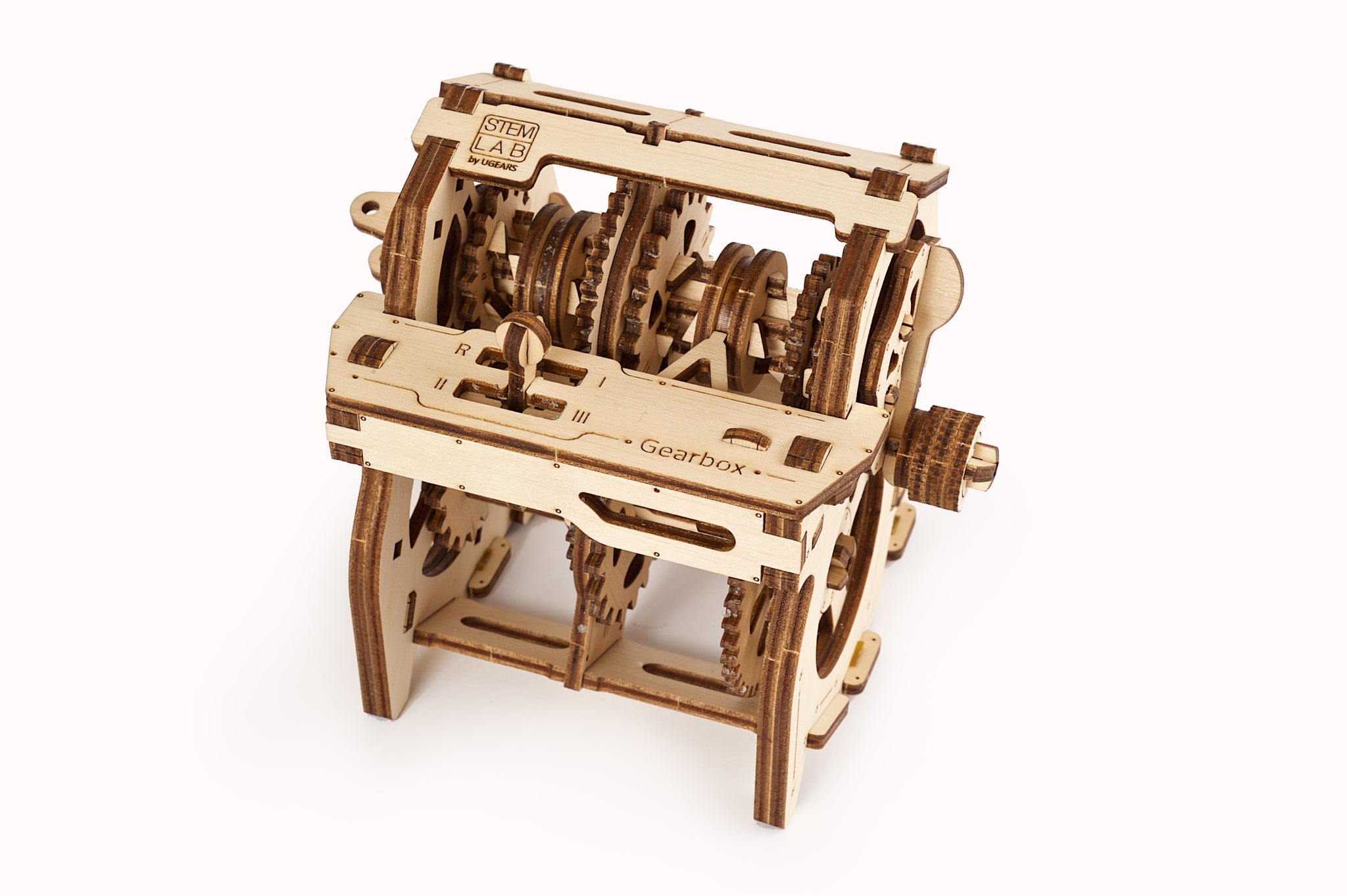

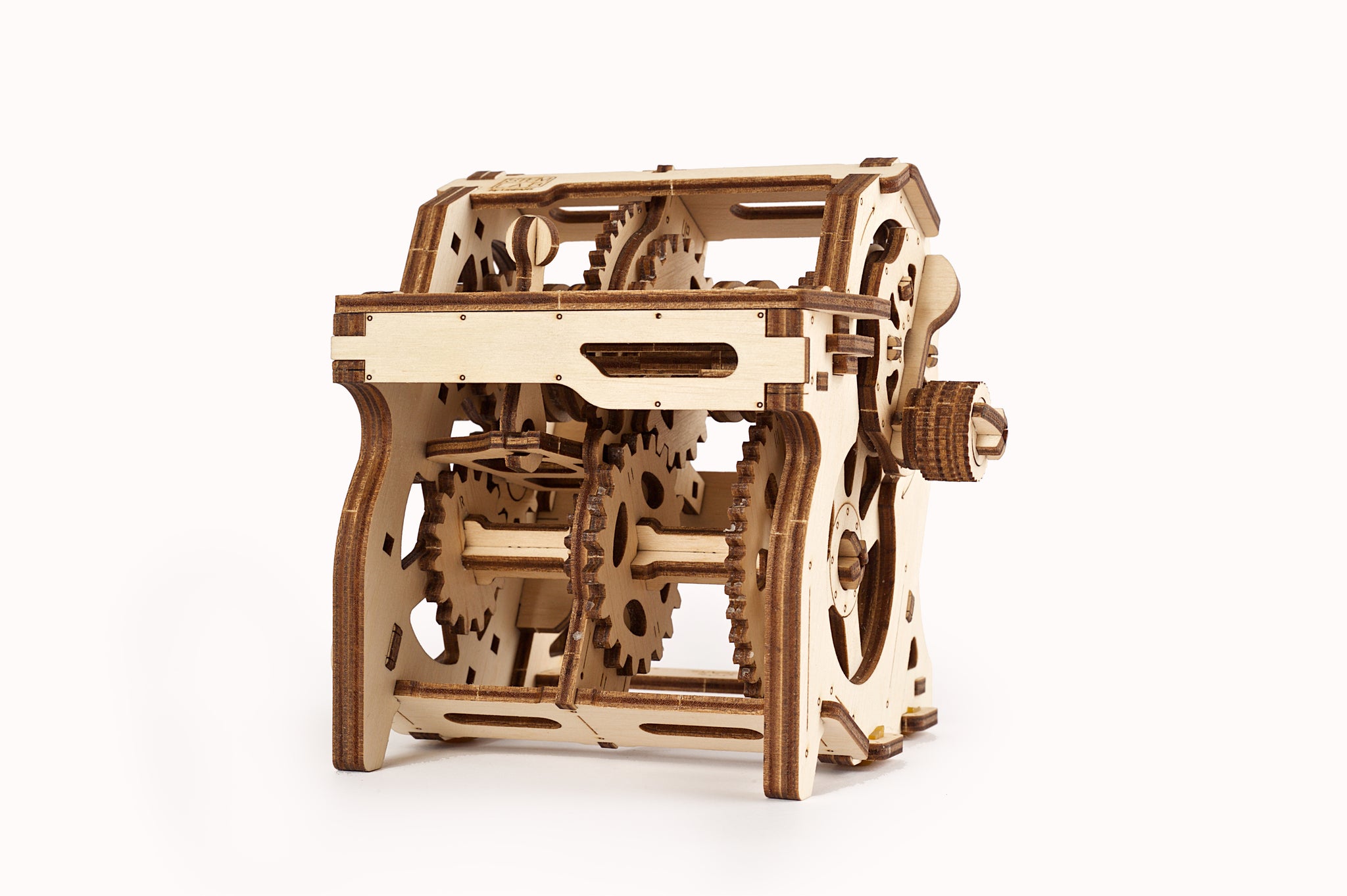

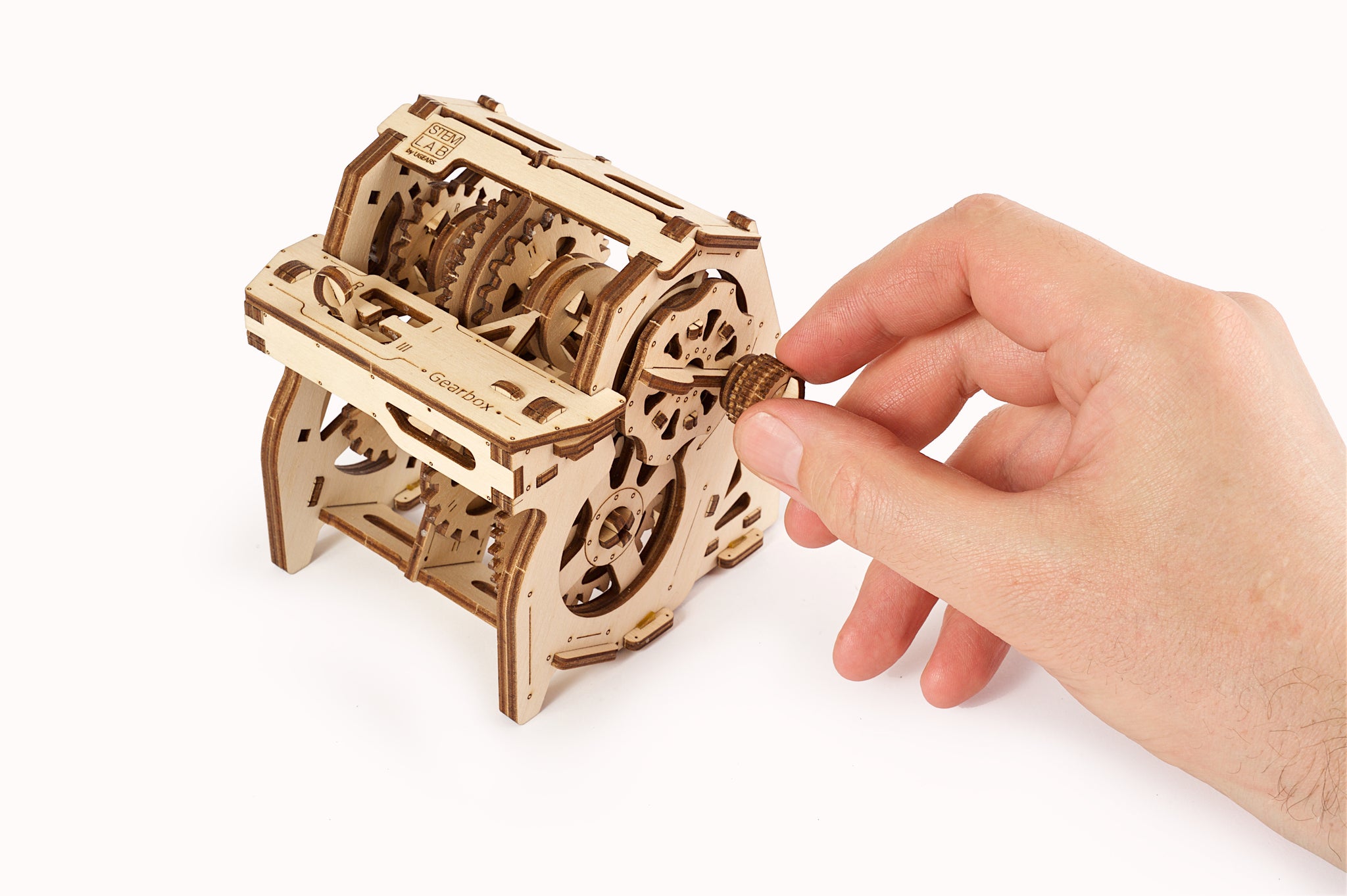

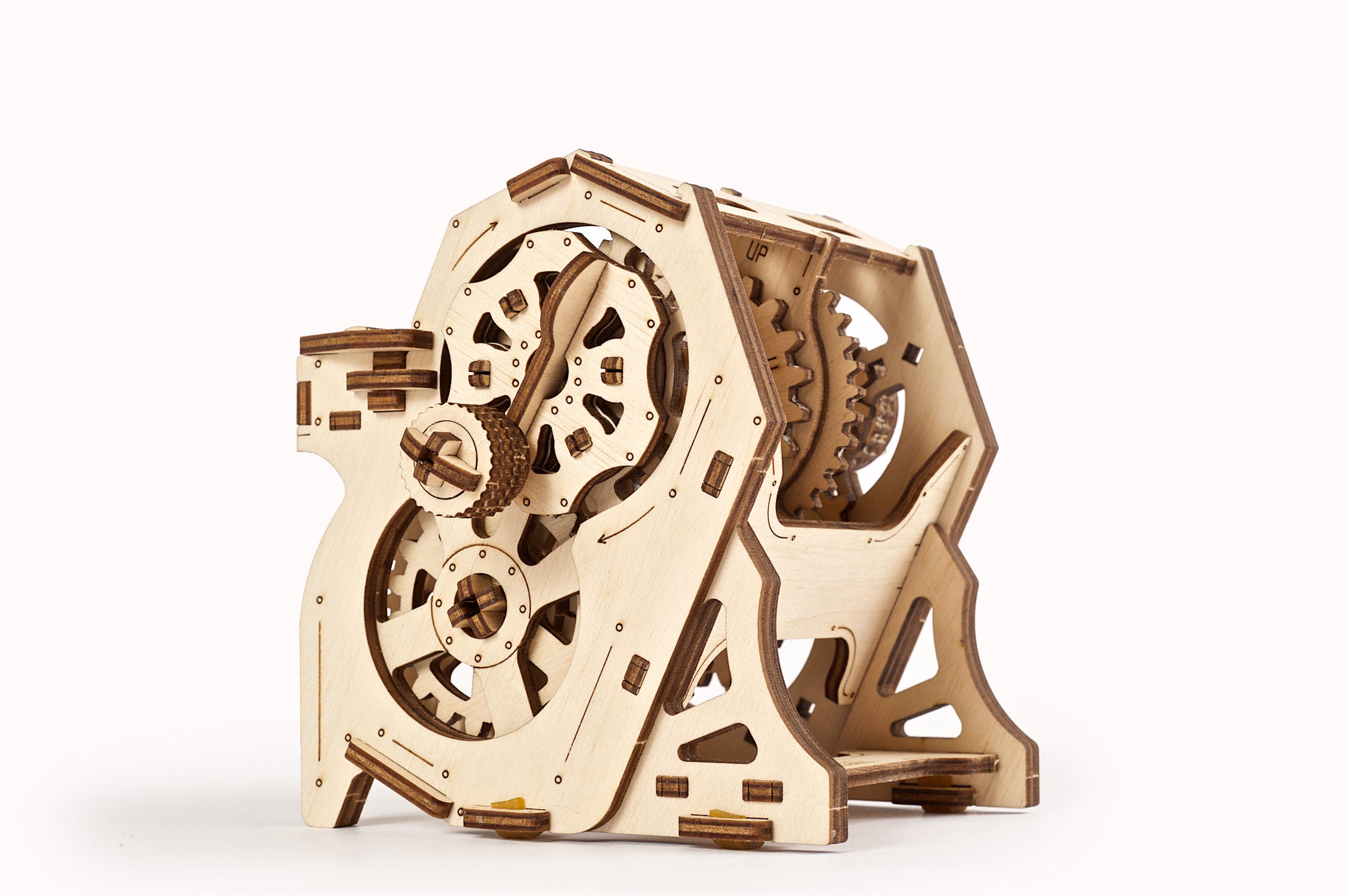

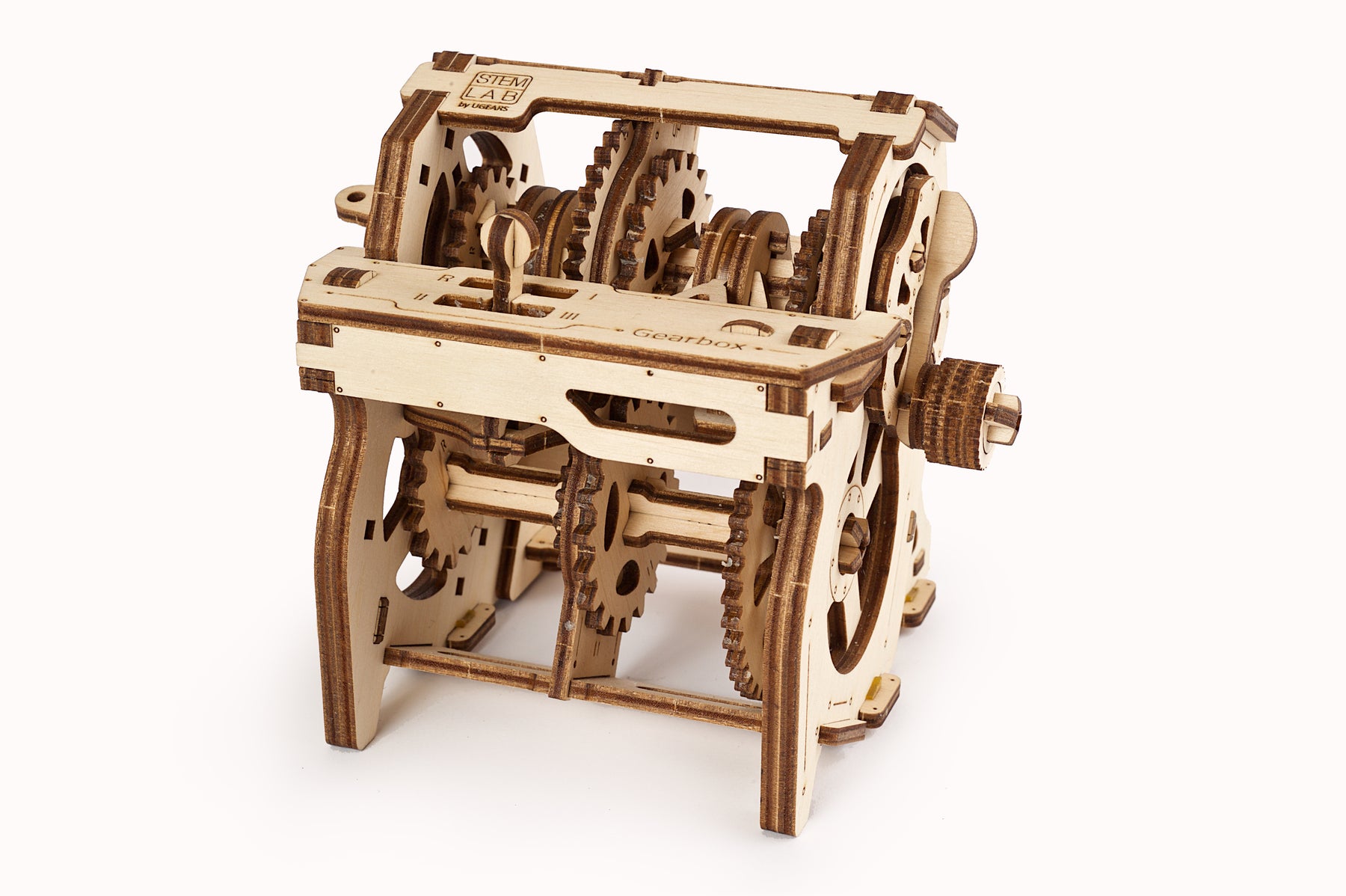

The gear is a stylized construction model, an interactive study guide for the mechanism with the purpose of being able to learn its basics and principles of work. A mechanical transmission is a pressure reducer that enables speed and torque conversions from an engine to the drive wheels. Once built, you can experiment with the Ugears manual gearbox, alternating between the I., II., III. Change gear or reverse with a pair of kinematic gears with different ratios. In the idle position N, both clutch transmissions are decoupled and remain in neutral. In first gear, the counter gear and the gears turn at the lowest speed. Second gear makes the drive shaft rotate with the flywheel at an average speed and third gear makes the counter gear and all gears rotate at the highest speed. Shift into reverse gear and watch the drive clutch gear move left toward gear "R" and connect to it.t.
